SC Linear Bushing

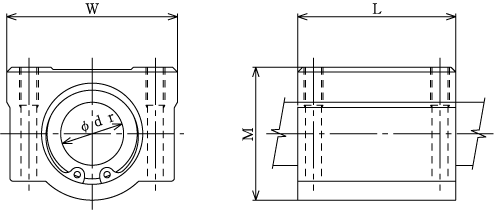

Drawing
Datasheet
| Model No. | Inscribed bore diameter | Outer dimensions | ||
| Height | Width | Length | ||
| dr | M | W | L | |
| - | mm | mm | mm | mm |
| SC 6UU | 6 | 18 | 30 | 25 |
| SC 8UU | 8 | 22 | 34 | 30 |
| SC 10UU | 10 | 26 | 40 | 35 |
| SC 12UU | 12 | 29 | 42 | 36 |
| SC 13UU | 13 | 30 | 44 | 39 |
| SC 16UU | 16 | 38.5 | 50 | 44 |
| SC 20UU | 20 | 42 | 54 | 50 |
| SC 25UU | 25 | 51.5 | 76 | 67 |
| SC 30UU | 30 | 59.5 | 78 | 72 |
| SC 35UU | 35 | 68 | 90 | 80 |
| SC 40UU | 40 | 78 | 102 | 90 |
| SC 50UU | 50 | 102 | 122 | 110 |
